序号 No. |
轮胎规格 Size of Tire |
轮辋型号 Rim Size |
花纹编号 Pattern No. | 外直径 Outside Diameter 5mm± | 断面宽度 Section Width 5mm± | 轮胎重量 Net Weight(Kg) 1.5%kg± | 最大负荷 Max Load(Kg) 其他工业车辆 Other Industrial vehicles 10Km/h |
1 | 10×3 | FB | B706 | 256 | 79 | 7.50 | 4.25 |
2 | 10×4 | FB | B706 | 256 | 102 | 5.90 | 630 |
3 4 | 12×4(With brake) 12x4(W/O brake) | FB | B707 B707 | 310 310 | 100 100 | 7.4/10.4 6.9/9.5 | 680 680 |
5 | 12x4.5 | FB | B707/B712 | 310 | 115 | 15.00 | 820 |
6 | 12.5x4.25 | FB | B712 | 320 | 108 | 18.00 | 810 |
7 8 | 14x41/2 15x5 | FB FB | B713 B712 | 358 384 | 114 127 | 13.50 21.80 | 920 1095 |

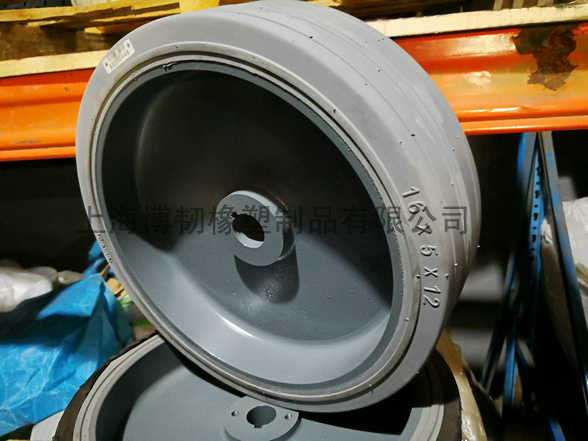

9 | 16x5x12(With brake) | FB | B706 | 406 | 125 | 15.2/18.8 | 1265 |
10 | 16x5x12(W/O brake) | FB | B706 | 406 | 125 | 14/17.3 | 1265 |
11 12 | 227x173/4 323x100 | FB FB | B714 B713 | 561 323 | 178 100 | 50.00 9.10 | 2270 6.35 |
13 | 406x125(16x5x12) | FB | B706 | 406 | 125 | 16.90 | 1265 |
14 | 406x127 | FB | B713 | 406 | 127 | 20.60 | 1265 |
15 16 | 2.00-8(12x4) 3.00-5 | 2.50/300 2.15 | B700/B706/B707 B713/B716 | 318/310 268/250 | 103/100 77/72 | 5.00 3.70 | 620 335 |
17 | 600x190 | FB | B706 | 604 | 190 | 55.20 | 2670 |
18 | 640x170x560 | FB | B700 | 640 | 170 | 63.50 | 2340 |
19 | 630x203x508 | FB | B700 | 630 | 203 | 70.50 | 3110 |
